Cable Trays
Cable trays are used to support and route electrical and data cables in industrial and commercial projects. They provide a structured alternative to conduit systems, allowing easier installation, maintenance, and future expansion.
Available Cable Tray Types
MetalEgypt offers multiple cable tray types to suit different load and routing requirements:
Ladder cable trays for heavy power cables
Perforated trays for control and low-voltage systems
Solid bottom trays for data and communication cables
Wire mesh trays for flexible and fast installations
Load Capacity and Durability
MetalEgypt cable trays are engineered to support operational cable loads while maintaining structural stability. Load capacity varies by tray type, material, and dimensions, ensuring suitability for both current and future cable requirements.
Materials and Finishes
Cable trays are available in galvanized steel, stainless steel, aluminum, and PVC-coated finishes, allowing reliable performance in indoor, outdoor, and corrosive environments.

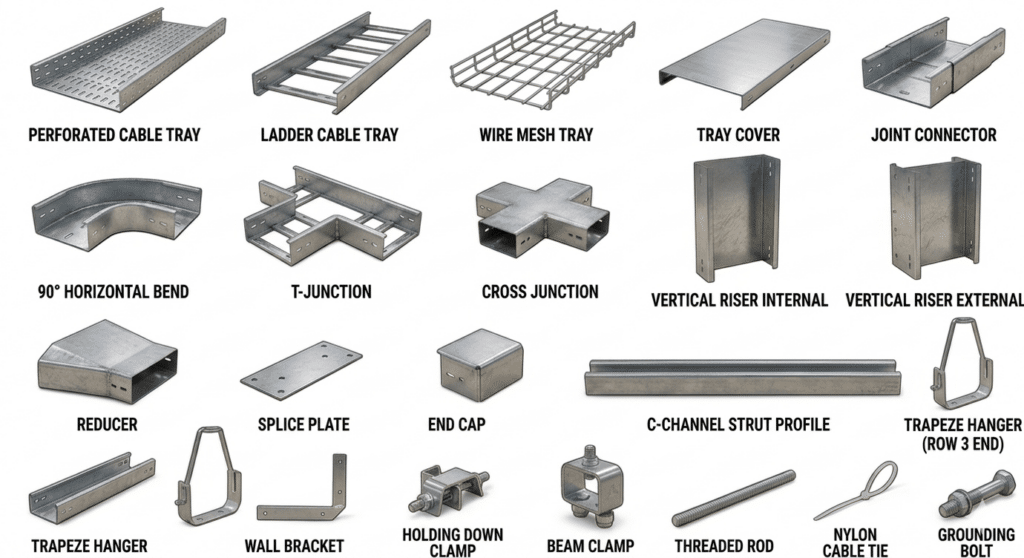

ِAccessories for cable trays:
MetalEgypt manufactures a complete range of cable tray accessories, including covers, connectors, splice plates, bends, risers, and junctions, ensuring full system compatibility and faster installation.
- Cover
- Connectors
- Splice Plates
- Riser
- T-Junctions
- Reducer
- C Channel
- U Channel
- Cable Ladder
- 90 Degree Bend
Full Specifications of MetalEgypt’s Cable Trays
- Dimensions: Various sizes to fit all needs
- Load capacity: Engineered to withstand significant weight
- Finishes: Available in galvanized steel, stainless steel, and more
- Standards: Compliant with international standards such as ISO
- Superior quality and durability
- Customization options to meet specific project requirements
- Competitive pricing without compromising on quality
Cable Trays Specifications and Usage Table
| Tray ID | Tray Type | Material | Width (mm) | Height (mm) | Length (m) | Load Capacity (kg/m) | Coating/Finish | Installation Type | Application | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Ladder Tray | Steel | 300 | 50 | 3 | 50 | Galvanized | Wall-Mounted | Power Cables | Heavy-duty |
| 2 | Perforated Tray | Aluminum | 200 | 40 | 2.5 | 30 | Anodized | Ceiling-Suspended | Low-Voltage Wiring | Light-weight |
| 3 | Solid Bottom Tray | Stainless Steel | 150 | 25 | 2 | 20 | Polished | Underfloor | Data and Communication Cables | Corrosion-resistant |
| 4 | Wire Mesh Tray | PVC-Coated Steel | 100 | 25 | 2 | 15 | PVC Coated | Ceiling-Suspended or Wall-Mounted | General Wiring | Flexible Routing |
| 5 | Channel Tray | Fiberglass | 250 | 30 | 3 | 25 | UV Resistant | Outdoor | Solar Panel Cabling | Weather-resistant |
Typical Applications
Industrial plants and factories
Data centers and server rooms
Commercial and office buildings
Hospitals and healthcare facilities
Energy and solar projects
Cable trays play a crucial role in modern electrical and data cable management systems. They offer a flexible and effective solution for organizing and routing cables, protecting them from physical damage, debris, and moisture. This is especially important in industrial environments, data centers, and commercial buildings where a large number of cables need to be managed efficiently. By preventing cable tangling and allowing easy access for maintenance and upgrades, cable trays enhance safety and minimize the risk of electrical fires.
Request specifications or a customized quotation based on your project requirements.
